引脚

引脚简介

T0 芯片集成了多个接口外设。由于芯片封装尺寸小、管脚数量有限，所以通过 iomux 复用的方式来控制， 多路复用由软件可编程的寄存器控制（详细参考 iomux 章节）。

IO 引脚主要包含了：

• pad_aond_iomux 是常开域功能 IO

• pad_iomux 是系统域的功能复用 IO

• 时钟 IO：xtal_in ，xtal_out

• 复位 IO：NRST

• 模拟复用管脚（pad_iomux_54~pad_iomux_95），既可以作为数字信号，也可以作为模拟信号

• 电源管脚，为芯片外设和非电源管脚供电

引脚布局

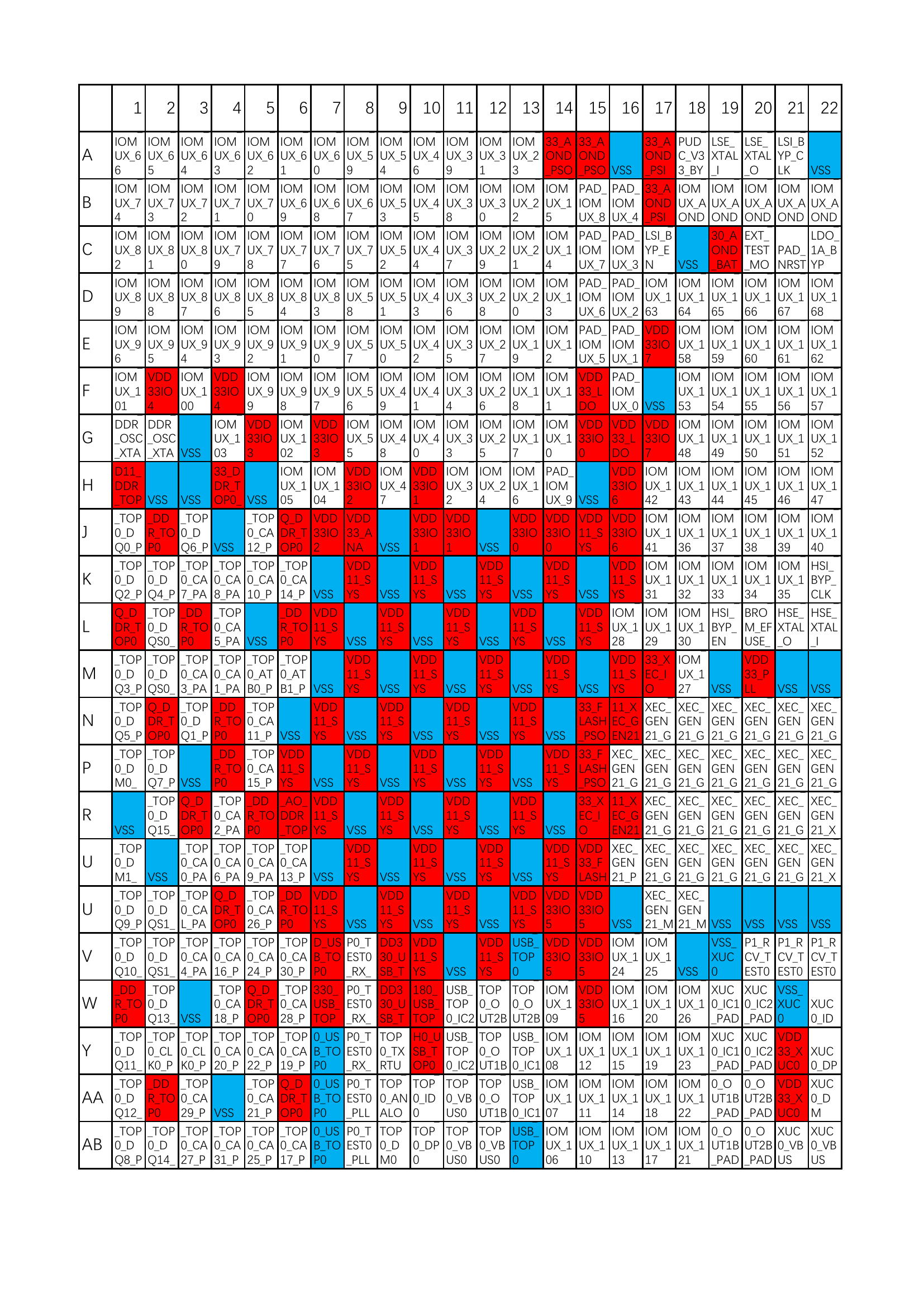

T0 WBBGA484 封装 如 pinout 分配图 所示。

pinout 分配图

详细的引脚分布如下表

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22
A	PAD_IOMUX_66	PAD_IOMUX_65	PAD_IOMUX_64	PAD_IOMUX_63	PAD_IOMUX_62	PAD_IOMUX_61	PAD_IOMUX_60	PAD_IOMUX_59	PAD_IOMUX_54	PAD_IOMUX_46	PAD_IOMUX_39	PAD_IOMUX_31	PAD_IOMUX_23	VDD33_AOND_PSO	VDD33_AOND_PSO	VSS	VDD33_AOND_PSI	PAD_PUDC_V33_BYP	PAD_LSE_XTAL_I	PAD_LSE_XTAL_O	PAD_LSI_BYP_CLK	VSS
B	PAD_IOMUX_74	PAD_IOMUX_73	PAD_IOMUX_72	PAD_IOMUX_71	PAD_IOMUX_70	PAD_IOMUX_69	PAD_IOMUX_68	PAD_IOMUX_67	PAD_IOMUX_53	PAD_IOMUX_45	PAD_IOMUX_38	PAD_IOMUX_30	PAD_IOMUX_22	PAD_IOMUX_15	PAD_IOMUX_8	PAD_IOMUX_4	VDD33_AOND_PSI	PAD_IOMUX_AOND_0	PAD_IOMUX_AOND_1	PAD_IOMUX_AOND_2	PAD_IOMUX_AOND_3	PAD_IOMUX_AOND_4
C	PAD_IOMUX_82	PAD_IOMUX_81	PAD_IOMUX_80	PAD_IOMUX_79	PAD_IOMUX_78	PAD_IOMUX_77	PAD_IOMUX_76	PAD_IOMUX_75	PAD_IOMUX_52	PAD_IOMUX_44	PAD_IOMUX_37	PAD_IOMUX_29	PAD_IOMUX_21	PAD_IOMUX_14	PAD_IOMUX_7	PAD_IOMUX_3	PAD_LSI_BYP_EN	VSS	VDD30_AOND_BAT	PAD_EXT_TEST_MODE	PAD_NRST	PAD_LDO_1A_BYP
D	PAD_IOMUX_89	PAD_IOMUX_88	PAD_IOMUX_87	PAD_IOMUX_86	PAD_IOMUX_85	PAD_IOMUX_84	PAD_IOMUX_83	PAD_IOMUX_58	PAD_IOMUX_51	PAD_IOMUX_43	PAD_IOMUX_36	PAD_IOMUX_28	PAD_IOMUX_20	PAD_IOMUX_13	PAD_IOMUX_6	PAD_IOMUX_2	PAD_IOMUX_163	PAD_IOMUX_164	PAD_IOMUX_165	PAD_IOMUX_166	PAD_IOMUX_167	PAD_IOMUX_168
E	PAD_IOMUX_96	PAD_IOMUX_95	PAD_IOMUX_94	PAD_IOMUX_93	PAD_IOMUX_92	PAD_IOMUX_91	PAD_IOMUX_90	PAD_IOMUX_57	PAD_IOMUX_50	PAD_IOMUX_42	PAD_IOMUX_35	PAD_IOMUX_27	PAD_IOMUX_19	PAD_IOMUX_12	PAD_IOMUX_5	PAD_IOMUX_1	VDD33IO7	PAD_IOMUX_158	PAD_IOMUX_159	PAD_IOMUX_160	PAD_IOMUX_161	PAD_IOMUX_162
F	PAD_IOMUX_101	VDD33IO4	PAD_IOMUX_100	VDD33IO4	PAD_IOMUX_99	PAD_IOMUX_98	PAD_IOMUX_97	PAD_IOMUX_56	PAD_IOMUX_49	PAD_IOMUX_41	PAD_IOMUX_34	PAD_IOMUX_26	PAD_IOMUX_18	PAD_IOMUX_11	VDD33_LDO	PAD_IOMUX_0	VSS	PAD_IOMUX_153	PAD_IOMUX_154	PAD_IOMUX_155	PAD_IOMUX_156	PAD_IOMUX_157
G	PAD_DDR_OSC_XTAL_I	PAD_DDR_OSC_XTAL_O	VSS	PAD_IOMUX_103	VDD33IO3	PAD_IOMUX_102	VDD33IO3	PAD_IOMUX_55	PAD_IOMUX_48	PAD_IOMUX_40	PAD_IOMUX_33	PAD_IOMUX_25	PAD_IOMUX_17	PAD_IOMUX_10	VDD33IO0	VDD33_LDO	VDD33IO7	PAD_IOMUX_148	PAD_IOMUX_149	PAD_IOMUX_150	PAD_IOMUX_151	PAD_IOMUX_152
H	AVDD11_DDR_TOP0_PLL	VSS	VSS	VDD33_DDR_TOP0_IO	VSS	PAD_IOMUX_105	PAD_IOMUX_104	VDD33IO2	PAD_IOMUX_47	VDD33IO1	PAD_IOMUX_32	PAD_IOMUX_24	PAD_IOMUX_16	PAD_IOMUX_9	VSS	VDD33IO6	PAD_IOMUX_142	PAD_IOMUX_143	PAD_IOMUX_144	PAD_IOMUX_145	PAD_IOMUX_146	PAD_IOMUX_147
J	DDR_TOP0_DQ0_PAD	VDD_DDR_TOP0	DDR_TOP0_DQ6_PAD	VSS	DDR_TOP0_CA12_PAD	VDDQ_DDR_TOP0	VDD33IO2	VDD33_ANA	VSS	VDD33IO1	VDD33IO1	VSS	VDD33IO0	VDD33IO0	VDD11_SYS	VDD33IO6	PAD_IOMUX_141	PAD_IOMUX_136	PAD_IOMUX_137	PAD_IOMUX_138	PAD_IOMUX_139	PAD_IOMUX_140
K	DDR_TOP0_DQ2_PAD	DDR_TOP0_DQ4_PAD	DDR_TOP0_CA7_PAD	DDR_TOP0_CA8_PAD	DDR_TOP0_CA10_PAD	DDR_TOP0_CA14_PAD	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	PAD_IOMUX_131	PAD_IOMUX_132	PAD_IOMUX_133	PAD_IOMUX_134	PAD_IOMUX_135	PAD_HSI_BYP_CLK
L	VDDQ_DDR_TOP0	DDR_TOP0_DQS0_PAD_N	VDD_DDR_TOP0	DDR_TOP0_CA5_PAD	VSS	VDD_DDR_TOP0	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	PAD_IOMUX_128	PAD_IOMUX_129	PAD_IOMUX_130	PAD_HSI_BYP_EN	PAD_BROM_EFUSE_RDY	PAD_HSE_XTAL_O	PAD_HSE_XTAL_I
M	DDR_TOP0_DQ3_PAD	DDR_TOP0_DQS0_PAD_P	DDR_TOP0_CA3_PAD	DDR_TOP0_CA1_PAD	DDR_TOP0_ATB0_PAD	DDR_TOP0_ATB1_PAD	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VDD33_XEC_IO	PAD_IOMUX_127	VSS	VDD33_PLL	VSS	VSS
N	DDR_TOP0_DQ5_PAD	VDDQ_DDR_TOP0	DDR_TOP0_DQ1_PAD	VDD_DDR_TOP0	DDR_TOP0_CA11_PAD	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD33_FLASH_PSO	VDD11_XEC_GEN21	PAD_XEC_GEN21_GMII_RXER	PAD_XEC_GEN21_GMII_RXDV	PAD_XEC_GEN21_GMII_RXD4	PAD_XEC_GEN21_GMII_RXD5	PAD_XEC_GEN21_GMII_RXD6	PAD_XEC_GEN21_GMII_RXD7
P	DDR_TOP0_DM0_PAD	DDR_TOP0_DQ7_PAD	VSS	VDD_DDR_TOP0	DDR_TOP0_CA15_PAD	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VDD33_FLASH_PSO	PAD_XEC_GEN21_GMII_TXEN	PAD_XEC_GEN21_GMII_TXER	PAD_XEC_GEN21_GMII_RXD0	PAD_XEC_GEN21_GMII_RXD1	PAD_XEC_GEN21_GMII_RXD2	PAD_XEC_GEN21_GMII_RXD3	PAD_XEC_GEN21_GMII_RXC
R	VSS	DDR_TOP0_DQ15_PAD	VDDQ_DDR_TOP0	DDR_TOP0_CA2_PAD	VDD_DDR_TOP0	VDD_AO_DDR_TOP0	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD33_XEC_IO	VDD11_XEC_GEN21	PAD_XEC_GEN21_GMII_CRS	PAD_XEC_GEN21_GMII_TXD4	PAD_XEC_GEN21_GMII_TXD5	PAD_XEC_GEN21_GMII_TXD6	PAD_XEC_GEN21_GMII_TXD7	PAD_XEC_GEN21_XMII_TXC
U	DDR_TOP0_DM1_PAD	VSS	DDR_TOP0_CA0_PAD	DDR_TOP0_CA6_PAD	DDR_TOP0_CA9_PAD	DDR_TOP0_CA13_PAD	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VDD33_FLASH	PAD_XEC_GEN21_PPS_OUT	PAD_XEC_GEN21_GMII_COL	PAD_XEC_GEN21_GMII_TXD0	PAD_XEC_GEN21_GMII_TXD1	PAD_XEC_GEN21_GMII_TXD2	PAD_XEC_GEN21_GMII_TXD3	PAD_XEC_GEN21_XMII_GTXC
U	DDR_TOP0_DQ9_PAD	DDR_TOP0_DQS1_PAD_P	DDR_TOP0_CAL_PAD	VDDQ_DDR_TOP0	DDR_TOP0_CA26_PAD	VDD_DDR_TOP0	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VSS	VDD11_SYS	VDD33IO5	VDD33IO5	VSS	PAD_XEC_GEN21_MDIO	PAD_XEC_GEN21_MDC	VSS	VSS	VSS	VSS
V	DDR_TOP0_DQ10_PAD	DDR_TOP0_DQS1_PAD_N	DDR_TOP0_CA4_PAD	DDR_TOP0_CA16_PAD	DDR_TOP0_CA24_PAD	DDR_TOP0_CA30_PAD	DVDD_USB_TOP0	USB2P0_TEST0_RX_FS_DATA_TSET_OUT	CPVDD330_USB_TOP0	VDD11_SYS	VSS	VDD11_SYS	VSS_USB_TOP0	VDD33IO5	VDD33IO5	PAD_IOMUX_124	PAD_IOMUX_125	VSS	VSS_XUC0	USB1P1_RCV_TEST0_VP_TEST_OUT	USB1P1_RCV_TEST0_RCV_TEST_OUT	USB1P1_RCV_TEST0_VM_TEST_OUT
W	VDD_DDR_TOP0	DDR_TOP0_DQ13_PAD	VSS	DDR_TOP0_CA18_PAD	VDDQ_DDR_TOP0	DDR_TOP0_CA28_PAD	VDD330_USB_TOP0	USB2P0_TEST0_RX_SE_DP_TEST_OUT	CPVDD330_USB_TOP0	VDD180_USB_TOP0	USB_TOP0_IC2	USB_TOP0_OUT2B	USB_TOP0_OUT2B	PAD_IOMUX_109	VDD33IO5	PAD_IOMUX_116	PAD_IOMUX_120	PAD_IOMUX_126	XUC0_IC1_PAD	XUC0_IC2_PAD	VSS_XUC0	XUC0_ID
Y	DDR_TOP0_DQ11_PAD	DDR_TOP0_CLK0_PAD_P	DDR_TOP0_CLK0_PAD_N	DDR_TOP0_CA20_PAD	DDR_TOP0_CA22_PAD	DDR_TOP0_CA19_PAD	VSSA0_USB_TOP0	USB2P0_TEST0_RX_SE_DM_TSET_OUT	USB_TOP0_TXRTUNE	VDDH0_USB_TOP0	USB_TOP0_IC2	USB_TOP0_OUT1B	USB_TOP0_IC1	PAD_IOMUX_108	PAD_IOMUX_112	PAD_IOMUX_115	PAD_IOMUX_119	PAD_IOMUX_123	XUC0_IC1_PAD	XUC0_IC2_PAD	VDD33_XUC0	XUC0_DP
AA	DDR_TOP0_DQ12_PAD	VDD_DDR_TOP0	DDR_TOP0_CA29_PAD	VSS	DDR_TOP0_CA21_PAD	VDDQ_DDR_TOP0	VSSA0_USB_TOP0	USB2P0_TEST0_PLL480M_TEST1	USB_TOP0_ANALOGTEST	USB_TOP0_ID0	USB_TOP0_VBUS0	USB_TOP0_OUT1B	USB_TOP0_IC1	PAD_IOMUX_107	PAD_IOMUX_111	PAD_IOMUX_114	PAD_IOMUX_118	PAD_IOMUX_122	XUC0_OUT1B_PAD	XUC0_OUT2B_PAD	VDD33_XUC0	XUC0_DM
AB	DDR_TOP0_DQ8_PAD	DDR_TOP0_DQ14_PAD	DDR_TOP0_CA27_PAD	DDR_TOP0_CA31_PAD	DDR_TOP0_CA25_PAD	DDR_TOP0_CA17_PAD	VSSA0_USB_TOP0	USB2P0_TEST0_PLL480M_TEST0	USB_TOP0_DM0	USB_TOP0_DP0	USB_TOP0_VBUS0	USB_TOP0_VBUS0	VSS_USB_TOP0	PAD_IOMUX_106	PAD_IOMUX_110	PAD_IOMUX_113	PAD_IOMUX_117	PAD_IOMUX_121	XUC0_OUT1B_PAD	XUC0_OUT2B_PAD	XUC0_VBUS	XUC0_VBUS

引脚定义

引脚名称	引脚序号	类型	引脚描述
VDD33_AOND_PSI	B17	P	PSI power
VSS	C18	P	VSS
VSS	C18	P	VSS power
VDD33_AOND_PSO	A15	P	PSO power
pad_iomux_aond_0	B18	IO(LP)	rtc_tamp_in
pad_iomux_aond_1	B19	IO(LP)	rtc_taml_out
pad_iomux_aond_2	B20	IO(LP)	rtc_ts
pad_iomux_aond_3	B21	IO(LP)	pmic_ack
pad_iomux_aond_4	B22	IO(LP)	pmic_pwr_on
pad_ext_test_mode	C20	T	dft test_mode
VSS	A22	P	VSS
VDD33_AOND_PSO	A15	P	PSO power
pad_ldo_1a_byp	C22	I/O	ldo_1a bypass
pad_pudc_v33_byp	A18	I/O	pudc_v33 bypass
pad_nrst	C21	I/O	nrst
pad_lsi_byp_en	C17	I/O	lsi bypass when pull up
pad_lsi_byp_clk	A21	I/O	act on lsi_clk when pull up
VDD33_AOND_PSO	A14	P	PSO power
pad_lse_xtal_o	A20	XTAL	xtal output
pad_lse_xtal_i	A19	XTAL	xtal input
VSS	A16	P	VSS
VSS	A16	P	VSS
VDD11_SYS	J15	P	CORE power
VSS	K15	P	VSS
VDD11_SYS	J15	P	CORE power
pad_iomux_0	F16	I/O	alternative function IO
pad_iomux_1	E16	I/O	alternative function IO
pad_iomux_2	D16	I/O	alternative function IO
pad_iomux_3	C16	I/O	alternative function IO
VDD11_SYS	K14	P	CORE power
VSS	P11	P	VSS
VDD33IO0	J13	P	IO0 group power
pad_iomux_4	B16	I/O	alternative function IO
pad_iomux_5	E15	I/O	alternative function IO
pad_iomux_6	D15	I/O	alternative function IO
pad_iomux_7	C15	I/O	alternative function IO
pad_iomux_8	B15	I/O	alternative function IO
VSS	M11	P	VSS
VDD33IO0	J14	P	IO0 group power
VSS	M11	P	VSS
VDD11_SYS	L13	P	CORE power
pad_iomux_9	H14	I/O	alternative function IO
pad_iomux_10	G14	I/O	alternative function IO
pad_iomux_11	F14	I/O	alternative function IO
pad_iomux_12	E14	I/O	alternative function IO
pad_iomux_13	D14	I/O	alternative function IO
pad_iomux_14	C14	I/O	alternative function IO
VDD11_SYS	M12	P	CORE power
VSS	K11	P	VSS
VDD33IO0	G15	P	IO0 group power
pad_iomux_15	B14	I/O	alternative function IO
pad_iomux_16	H13	I/O	alternative function IO
pad_iomux_17	G13	I/O	alternative function IO
pad_iomux_18	F13	I/O	alternative function IO
pad_iomux_19	E13	I/O	alternative function IO
pad_iomux_20	D13	I/O	alternative function IO
pad_iomux_21	C13	I/O	alternative function IO
VDD11_SYS	K12	P	CORE power
VSS	R10	P	VSS
pad_iomux_22	B13	I/O	alternative function IO
pad_iomux_23	A13	I/O	alternative function IO
pad_iomux_24	H12	I/O	alternative function IO
pad_iomux_25	G12	I/O	alternative function IO
pad_iomux_26	F12	I/O	alternative function IO
pad_iomux_27	E12	I/O	alternative function IO
VDD11_SYS	L11	P	CORE power
VSS	N10	P	VSS
VDD33IO1	J10	P	IO1 group power
pad_iomux_28	D12	I/O	alternative function IO
pad_iomux_29	C12	I/O	alternative function IO
pad_iomux_30	B12	I/O	alternative function IO
pad_iomux_31	A12	I/O	alternative function IO
VSS	L10	P	VSS
VDD33IO1	H10	I/O	alternative function IO
VSS	L10	P	VSS
VDD11_SYS	M10	P	CORE power
pad_iomux_32	H11	I/O	alternative function IO
pad_iomux_33	G11	I/O	alternative function IO
pad_iomux_34	F11	I/O	alternative function IO
pad_iomux_35	E11	I/O	alternative function IO
VDD11_SYS	M10	P	CORE power
VSS	T9	P	VSS
VDD33IO1	J11	P	IO1 group power
pad_iomux_36	D11	I/O	alternative function IO
pad_iomux_37	C11	I/O	alternative function IO
pad_iomux_38	B11	I/O	alternative function IO
pad_iomux_39	A11	I/O	alternative function IO
pad_iomux_40	G10	I/O	alternative function IO
pad_iomux_41	F10	I/O	alternative function IO
pad_iomux_42	E10	I/O	alternative function IO
VDD11_SYS	K10	P	CORE power
VSS	P9	P	VSS
pad_iomux_43	D10	I/O	alternative function IO
pad_iomux_44	C10	I/O	alternative function IO
pad_iomux_45	B10	I/O	alternative function IO
pad_iomux_46	A10	I/O	alternative function IO
pad_iomux_47	H9	I/O	alternative function IO
VDD11_SYS	L9	P	CORE power
VSS	M9	P	VSS
VDD33IO2	J7	P	IO2 group power
pad_iomux_48	G9	I/O	alternative function IO
pad_iomux_49	F9	I/O	alternative function IO
pad_iomux_50	E9	I/O	alternative function IO
pad_iomux_51	D9	I/O	alternative function IO
pad_iomux_52	C9	I/O	alternative function IO
VDD11_SYS	M8	P	CORE power
VSS	K9	P	VSS
pad_iomux_53	B9	I/O	alternative function IO
pad_iomux_54	A9	I/O	alternative function IO
pad_iomux_55	G8	I/O	alternative function IO
pad_iomux_56	F8	I/O	alternative function IO
pad_iomux_57	E8	I/O	alternative function IO
pad_iomux_58	D8	I/O	alternative function IO
VSS	J9	P	VSS
VDD11_SYS	K8	P	CORE power
VSS	J9	P	VSS
VSS	R8	P	VSS
VDD33IO2	H8	P	IO2 group power
pad_iomux_59	A8	I/O	alternative function IO
pad_iomux_60	A7	I/O	alternative function IO
pad_iomux_61	A6	I/O	alternative function IO
pad_iomux_62	A5	I/O	alternative function IO
pad_iomux_63	A4	I/O	alternative function IO
VDD33_ANA	J8	P	ANALOG power
VSS	N8	P	VSS
VSS	N8	P	VSS
VDD11_SYS	L7	P	CORE power
pad_iomux_64	A3	I/O	alternative function IO
pad_iomux_65	A2	I/O	alternative function IO
pad_iomux_66	A1	I/O	alternative function IO
pad_iomux_67	B8	I/O	alternative function IO
pad_iomux_68	B7	I/O	alternative function IO
pad_iomux_69	B6	I/O	alternative function IO
pad_iomux_70	B5	I/O	alternative function IO
VDD11_SYS	N9	P	CORE power
VSS	L8	P	VSS
VDD33IO3	G5	P	IO3 group power
pad_iomux_71	B4	I/O	alternative function IO
pad_iomux_72	B3	I/O	alternative function IO
pad_iomux_73	B2	I/O	alternative function IO
pad_iomux_74	B1	I/O	alternative function IO
pad_iomux_75	C8	I/O	alternative function IO
pad_iomux_76	C7	I/O	alternative function IO
pad_iomux_77	C6	I/O	alternative function IO
VDD33IO3	G7	P	IO3 group power
VSS	P7	P	VSS
pad_iomux_78	C5	I/O	alternative function IO
pad_iomux_79	C4	I/O	alternative function IO
pad_iomux_80	C3	I/O	alternative function IO
pad_iomux_81	C2	I/O	alternative function IO
pad_iomux_82	C1	I/O	alternative function IO
pad_iomux_83	D7	I/O	alternative function IO
pad_iomux_84	D6	I/O	alternative function IO
VSS	M7	P	VSS
VDD11_SYS	P8	P	CORE power
pad_iomux_85	D5	I/O	alternative function IO
pad_iomux_86	D4	I/O	alternative function IO
pad_iomux_87	D3	I/O	alternative function IO
pad_iomux_88	D2	I/O	alternative function IO
pad_iomux_89	D1	I/O	alternative function IO
pad_iomux_90	E7	I/O	alternative function IO
VDD11_SYS	R7	P	CORE power
VSS	K7	P	VSS
pad_iomux_91	E6	I/O	alternative function IO
pad_iomux_92	E5	I/O	alternative function IO
pad_iomux_93	E4	I/O	alternative function IO
pad_iomux_94	E3	I/O	alternative function IO
pad_iomux_95	E2	I/O	alternative function IO
VDD33IO4	F2	P	IO4 group power
VSS	F17	P	VSS
VDD11_SYS	P6	P	CORE power
pad_iomux_96	E1	I/O	alternative function IO
pad_iomux_97	F7	I/O	alternative function IO
pad_iomux_98	F6	I/O	alternative function IO
pad_iomux_99	F5	I/O	alternative function IO
pad_iomux_100	F3	I/O	alternative function IO
VDD11_SYS	N7	P	CORE power
VSS	F17	P	VSS
VDD33IO4	F4	P	IO4 group power
pad_iomux_101	F1	I/O	alternative function IO
pad_iomux_102	G6	I/O	alternative function IO
pad_iomux_103	G4	I/O	alternative function IO
pad_iomux_104	H7	I/O	alternative function IO
pad_iomux_105	H6	I/O	alternative function IO
VSS	K15	P	VSS
VDD11_SYS	R9	P	CORE power
VDD11_SYS	R9	P	CORE power
VSS	K15	P	VSS
VDD11_SYS	T8	P	CORE power
AVDD11_DDR_TOP0_PLL	H1	P	ddr_osc power
VSS	G3	P	VSS
pad_ddr_osc_xtal_i	G1	XTAL	xtal input
pad_ddr_osc_xtal_o	G2	XTAL	xtal output
VDD33_DDR_TOP0_IO	H4	P	DDR IO power
VSS	H2	P	VSS
VDD_DDR_TOP0	J2	P	DDR VDD power
ddr_top0_dq6_pad	J3	-	ddr_top0_dq6_pad
ddr_top0_dq2_pad	K1	-	ddr_top0_dq2_pad
ddr_top0_dq0_pad	J1	-	ddr_top0_dq0_pad
VSS	H3	P	VSS
VDD_DDR_TOP0	L6	P	DDR VDD power
ddr_top0_dqs0_pad_n	L2	-	ddr_top0_dqs0_pad_n
ddr_top0_dqs0_pad_p	M2	-	ddr_top0_dqs0_pad_p
VDDQ_DDR_TOP0	J6	P	DDR VDDQ power
VSS	H5	P	VSS
ddr_top0_dq4_pad	K2	-	ddr_top0_dq4_pad
ddr_top0_dq1_pad	N3	-	ddr_top0_dq1_pad
ddr_top0_dq3_pad	M1	-	ddr_top0_dq3_pad
ddr_top0_dm0_pad	P1	-	ddr_top0_dm0_pad
ddr_top0_dq5_pad	N1	-	ddr_top0_dq5_pad
ddr_top0_dq7_pad	P2	-	ddr_top0_dq7_pad
VDDQ_DDR_TOP0	L1	P	DDR VDDQ power
VDD_DDR_TOP0	L3	P	DDR VDD power
VSS	J4	P	VSS
ddr_top0_ca0_pad	T3	-	ddr_top0_ca0_pad
ddr_top0_ca1_pad	M4	-	ddr_top0_ca1_pad
ddr_top0_ca2_pad	R4	-	ddr_top0_ca2_pad
ddr_top0_ca3_pad	M3	-	ddr_top0_ca3_pad
ddr_top0_ca4_pad	V3	-	ddr_top0_ca4_pad
ddr_top0_ca5_pad	L4	-	ddr_top0_ca5_pad
ddr_top0_ca6_pad	T4	-	ddr_top0_ca6_pad
ddr_top0_ca7_pad	K3	-	ddr_top0_ca7_pad
VDDQ_DDR_TOP0	N2	P	DDR VDDQ power
VSS	L5	P	VSS
VDD_DDR_TOP0	N4	P	DDR VDD power
ddr_top0_ca8_pad	K4	-	ddr_top0_ca8_pad
ddr_top0_ca9_pad	T5	-	ddr_top0_ca9_pad
ddr_top0_ca10_pad	K5	-	ddr_top0_ca10_pad
ddr_top0_ca11_pad	N5	-	ddr_top0_ca11_pad
ddr_top0_ca12_pad	J5	-	ddr_top0_ca12_pad
ddr_top0_ca13_pad	T6	-	ddr_top0_ca13_pad
ddr_top0_ca14_pad	K6	-	ddr_top0_ca14_pad
ddr_top0_ca15_pad	P5	-	ddr_top0_ca15_pad
ddr_top0_atb1_pad	M6	-	ddr_top0_atb1_pad
ddr_top0_atb0_pad	M5	-	ddr_top0_atb0_pad
VDD_AO_DDR_TOP0	R6	P	DDR AO power
VSS	N6	P	VSS
VDD_DDR_TOP0	P4	P	DDR VDD power
ddr_top0_clk0_pad_p	Y2	-	ddr_top0_clk0_pad_p
ddr_top0_clk0_pad_n	Y3	-	ddr_top0_clk0_pad_n
VDDQ_DDR_TOP0	R3	P	DDR VDDQ power
VSS	P3	P	VSS
ddr_top0_cal_pad	U3	-	ddr_top0_cal_pad
ddr_top0_ca16_pad	V4	-	ddr_top0_ca16_pad
ddr_top0_ca17_pad	AB6	-	ddr_top0_ca17_pad
ddr_top0_ca18_pad	W4	-	ddr_top0_ca18_pad
ddr_top0_ca19_pad	Y6	-	ddr_top0_ca19_pad
ddr_top0_ca20_pad	Y4	-	ddr_top0_ca20_pad
ddr_top0_ca21_pad	AA5	-	ddr_top0_ca21_pad
ddr_top0_ca22_pad	Y5	-	ddr_top0_ca22_pad
VDDQ_DDR_TOP0	U4	P	DDR VDDQ power
VSS	R1	P	VSS
VDD_DDR_TOP0	R5	P	DDR VDD power
ddr_top0_ca24_pad	V5	-	ddr_top0_ca24_pad
ddr_top0_ca25_pad	AB5	-	ddr_top0_ca25_pad
ddr_top0_ca26_pad	U5	-	ddr_top0_ca26_pad
ddr_top0_ca27_pad	AB3	-	ddr_top0_ca27_pad
ddr_top0_ca28_pad	W6	-	ddr_top0_ca28_pad
ddr_top0_ca29_pad	AA3	-	ddr_top0_ca29_pad
ddr_top0_ca30_pad	V6	-	ddr_top0_ca30_pad
ddr_top0_ca31_pad	AB4	-	ddr_top0_ca31_pad
VDD_DDR_TOP0	U6	P	DDR VDD power
VDD_DDR_TOP0	W1	P	DDR VDD power
VSS	T2	P	VSS
VDDQ_DDR_TOP0	W5	P	DDR VDDQ power
ddr_top0_dq15_pad	R2	-	ddr_top0_dq15_pad
ddr_top0_dq13_pad	W2	-	ddr_top0_dq13_pad
ddr_top0_dm1_pad	T1	-	ddr_top0_dm1_pad
ddr_top0_dq11_pad	Y1	-	ddr_top0_dq11_pad
ddr_top0_dq9_pad	U1	-	ddr_top0_dq9_pad
ddr_top0_dq12_pad	AA1	-	ddr_top0_dq12_pad
VSS	W3	P	VSS
VDDQ_DDR_TOP0	AA6	P	DDR VDDQ power
ddr_top0_dqs1_pad_p	U2	-	ddr_top0_dqs1_pad_p
ddr_top0_dqs1_pad_n	V2	-	ddr_top0_dqs1_pad_n
VDD_DDR_TOP0	AA2	P	DDR VDD power
VSS	AA4	P	VSS
ddr_top0_dq8_pad	AB1	-	ddr_top0_dq8_pad
ddr_top0_dq14_pad	AB2	-	ddr_top0_dq14_pad
ddr_top0_dq10_pad	V1	-	ddr_top0_dq10_pad
usb2p0_test0_PLL480M_TEST1	AA8	-	usb2p0_test0_PLL480M_TEST1
usb2p0_test0_RX_SE_DP_TEST_OUT	W8	-	usb2p0_test0_RX_SE_DP_TEST_OUT
usb2p0_test0_RX_FS_DATA_TSET_OUT	V8	-	usb2p0_test0_RX_FS_DATA_TSET_OUT
usb2p0_test0_RX_SE_DM_TSET_OUT	Y8	-	usb2p0_test0_RX_SE_DM_TSET_OUT
usb2p0_test0_PLL480M_TEST0	AB8	-	usb2p0_test0_PLL480M_TEST0
VSSA0_USB_TOP0	AA7	P	VSS
usb_top0_ANALOGTEST	AA9	-	usb_top0_ANALOGTEST
DVDD_USB_TOP0	V7	-	DVDD USB power
usb_top0_TXRTUNE	Y9	-	usb_top0_TXRTUNE
VDD330_USB_TOP0	W7	P	VDD330 USB power
usb_top0_DM0	AB9	-	usb_top0_DM0
VSSA0_USB_TOP0	AB7	P	VSS
usb_top0_DP0	AB10	-	usb_top0_DP0
VDD180_USB_TOP0	W10	P	VDD180 USB power
usb_top0_VBUS0	AB11	-	usb_top0_VBUS0
VDDH0_USB_TOP0	Y10	P	VDDH0 USB power
usb_top0_ID0	AA10	-	usb_top0_ID0
VSSA0_USB_TOP0	Y7	P	VSS
VSS_USB_TOP0	V13	P	VSS
usb_top0_VBUS0	AA11	-	usb_top0_VBUS0
usb_top0_VBUS0	AB12	-	usb_top0_VBUS0
CPVDD330_USB_TOP0	W9	-	CPVDD330_USB_TOP0
CPVDD330_USB_TOP0	V9	-	CPVDD330_USB_TOP0
usb_top0_IC2	Y11	-	usb_top0_IC2
usb_top0_IC2	W11	-	usb_top0_IC2
usb_top0_OUT2B	W12	-	usb_top0_OUT2B
usb_top0_OUT2B	W13	-	usb_top0_OUT2B
usb_top0_OUT1B	AA12	-	usb_top0_OUT1B
usb_top0_OUT1B	Y12	-	usb_top0_OUT1B
usb_top0_IC1	AA13	-	usb_top0_IC1
usb_top0_IC1	Y13	-	usb_top0_IC1
VSS_USB_TOP0	AB13	P	VSS
VSS	T7	P	VSS
VDD11_SYS	U7	P	CORE power
VSS	T7	P	VSS
VDD11_SYS	U9	P	CORE power
VSS	U8	P	VSS
VDD11_SYS	V10	P	CORE power
VSS	U10	P	VSS
VDD11_SYS	V10	P	CORE power
VSS	V11	P	VSS
VDD33IO5	V14	P	VDDIO5 group power
VSS	V11	P	VSS
pad_iomux_106	AB14	I/O	alternative function IO
pad_iomux_107	AA14	I/O	alternative function IO
pad_iomux_108	Y14	I/O	alternative function IO
pad_iomux_109	W14	I/O	alternative function IO
VSS	U12	P	VSS
VDD11_SYS	T10	P	CORE power
VSS	U12	P	VSS
VDD33IO5	U14	P	VDDIO5 group power
VSS	T13	P	VSS
pad_iomux_110	AB15	I/O	alternative function IO
pad_iomux_111	AA15	I/O	alternative function IO
pad_iomux_112	Y15	I/O	alternative function IO
VDD11_SYS	P10	P	CORE power
VSS	T13	P	VSS
VDD33IO5	W15	P	VDDIO5 group power
pad_iomux_113	AB16	I/O	alternative function IO
pad_iomux_114	AA16	I/O	alternative function IO
pad_iomux_115	Y16	I/O	alternative function IO
pad_iomux_116	W16	I/O	alternative function IO
VSS	R14	P	VSS
VDD11_SYS	U11	P	CORE power
VSS	R14	P	VSS
VDD11_SYS	U11	P	CORE power
VSS	R12	P	VSS
pad_iomux_117	AB17	I/O	alternative function IO
pad_iomux_118	AA17	I/O	alternative function IO
pad_iomux_119	Y17	I/O	alternative function IO
pad_iomux_120	W17	I/O	alternative function IO
VDD11_SYS	R11	P	CORE power
VSS	R12	P	VSS
VDD33IO5	V15	P	VDDIO5 group power
pad_iomux_121	AB18	I/O	alternative function IO
pad_iomux_122	AA18	I/O	alternative function IO
pad_iomux_123	Y18	I/O	alternative function IO
VSS	T11	P	VSS
VDD11_SYS	N11	P	CORE power
VSS	T11	P	VSS
VDD11_SYS	N11	P	CORE power
pad_iomux_124	V16	I/O	alternative function IO
pad_iomux_125	V17	I/O	alternative function IO
pad_iomux_126	W18	I/O	alternative function IO
VDD33IO5	U15	P	VDDIO5 group power
VSS	P13	P	VSS
VDD11_SYS	V12	P	CORE power
VSS	P13	P	VSS
VDD11_SYS	V12	P	CORE power
VSS	N14	P	VSS
VDD11_SYS	T12	P	CORE power
VSS	N14	P	VSS
VDD11_SYS	P12	P	CORE power
VSS_XUC0	V19	P	VSS
xuc0_IC1_PAD	Y19	-	xuc0_IC1_PAD
xuc0_IC1_PAD	W19	-	xuc0_IC1_PAD
xuc0_OUT1B_PAD	AB19	-	xuc0_OUT1B_PAD
xuc0_OUT1B_PAD	AA19	-	xuc0_OUT1B_PAD
xuc0_OUT2B_PAD	AB20	-	xuc0_OUT2B_PAD
xuc0_OUT2B_PAD	AA20	-	xuc0_OUT2B_PAD
xuc0_IC2_PAD	Y20	-	xuc0_IC2_PAD
xuc0_IC2_PAD	W20	-	xuc0_IC2_PAD
VDD33_XUC0	AA21	-	VDD33_XUC0
VDD33_XUC0	Y21	-	VDD33_XUC0
xuc0_VBUS	AB21	-	xuc0_VBUS
xuc0_VBUS	AB22	-	xuc0_VBUS
xuc0_DM	AA22	-	xuc0_DM
xuc0_DP	Y22	-	xuc0_DP
xuc0_ID	W22	-	xuc0_ID
VSS_XUC0	W21	P	VSS
usb1p1_rcv_test0_VP_TEST_OUT	V20	-	usb1p1_rcv_test0_VP_TEST_OUT
usb1p1_rcv_test0_RCV_TEST_OUT	V21	-	usb1p1_rcv_test0_RCV_TEST_OUT
usb1p1_rcv_test0_VM_TEST_OUT	V22	-	usb1p1_rcv_test0_VM_TEST_OUT
pad_xec_gen21_pps_out	T16	-	pad_xec_gen21_pps_out
pad_xec_gen21_xmii_txc	R22	-	pad_xec_gen21_xmii_txc
pad_xec_gen21_xmii_gtxc	T22	-	pad_xec_gen21_xmii_gtxc
pad_xec_gen21_mdio	U17	-	pad_xec_gen21_mdio
VSS	U19	P	VSS
VDD11_XEC_GEN21	R16	P	XEC_GEN21 VDD power
VSS	U20	P	VSS
vdd33_xec_io	R15	P	XEC_GEN21 IO power
pad_xec_gen21_mdc	U18	-	pad_xec_gen21_mdc
pad_xec_gen21_gmii_col	T17	-	pad_xec_gen21_gmii_col
pad_xec_gen21_gmii_crs	R17	-	pad_xec_gen21_gmii_crs
pad_xec_gen21_gmii_txer	P17	-	pad_xec_gen21_gmii_txer
pad_xec_gen21_gmii_txen	P16	-	pad_xec_gen21_gmii_txen
pad_xec_gen21_gmii_txd0	T18	-	pad_xec_gen21_gmii_txd0
pad_xec_gen21_gmii_txd1	T19	-	pad_xec_gen21_gmii_txd1
pad_xec_gen21_gmii_txd2	T20	-	pad_xec_gen21_gmii_txd2
VSS	U21	P	VSS
pad_xec_gen21_gmii_txd3	T21	-	pad_xec_gen21_gmii_txd3
pad_xec_gen21_gmii_txd4	R18	-	pad_xec_gen21_gmii_txd4
pad_xec_gen21_gmii_txd5	R19	-	pad_xec_gen21_gmii_txd5
pad_xec_gen21_gmii_txd6	R20	-	pad_xec_gen21_gmii_txd6
pad_xec_gen21_gmii_txd7	R21	-	pad_xec_gen21_gmii_txd7
pad_xec_gen21_gmii_rxc	P22	-	pad_xec_gen21_gmii_rxc
pad_xec_gen21_gmii_rxer	N17	-	pad_xec_gen21_gmii_rxer
pad_xec_gen21_gmii_rxdv	N18	-	pad_xec_gen21_gmii_rxdv
VDD11_XEC_GEN21	N16	P	XEC_GEN21 VDD power
VSS	U22	P	VSS
vdd33_XEC_IO	M17	P	XEC_GEN21 IO power
pad_xec_gen21_gmii_rxd0	P18	-	pad_xec_gen21_gmii_rxd0
pad_xec_gen21_gmii_rxd1	P19	-	pad_xec_gen21_gmii_rxd1
pad_xec_gen21_gmii_rxd2	P20	-	pad_xec_gen21_gmii_rxd2
pad_xec_gen21_gmii_rxd3	P21	-	pad_xec_gen21_gmii_rxd3
pad_xec_gen21_gmii_rxd4	N19	-	pad_xec_gen21_gmii_rxd4
pad_xec_gen21_gmii_rxd5	N20	-	pad_xec_gen21_gmii_rxd5
pad_xec_gen21_gmii_rxd6	N21	-	pad_xec_gen21_gmii_rxd6
pad_xec_gen21_gmii_rxd7	N22	-	pad_xec_gen21_gmii_rxd7
VSS	V18	P	VSS
VDD33_FLASH	T15	P	FLASH INPUT power
VSS	V18	P	VSS
VDD33_FLASH	T15	P	FLASH INPUT power
VDD33_FLASH_PSO	P15	P	FLASH OUTPUT power
VSS	U16	P	VSS
VDD33_FLASH_PSO	N15	P	FLASH OUTPUT power
VSS	U16	P	VSS
VDD33_PLL	M20	P	PLL VDD33 power
VSS	M19	P	VSS
VDD33_PLL	M20	P	PLL VDD33 power
VSS	M21	P	VSS
VSS	M22	P	VSS
VDD11_SYS	U13	P	CORE power
pad_hse_xtal_i	L22	XTAL	xtal input
pad_hse_xtal_o	L21	XTAL	xtal output
pad_brom_efuse_rdy	L20	I/O	brom_ready bypass
pad_hsi_byp_en	L19	I/O	hsi bypass when pull up
pad_hsi_byp_clk	K22	I/O	act on hsi_clk when pull up
pad_iomux_127	M18	I/O	alternative function IO
pad_iomux_128	L16	I/O	alternative function IO
VDD11_SYS	R13	P	CORE power
VSS	J12	P	VSS
VDD33IO6	J16	P	VDDIO6 group power
pad_iomux_129	L17	I/O	alternative function IO
pad_iomux_130	L18	I/O	alternative function IO
pad_iomux_131	K17	I/O	alternative function IO
pad_iomux_132	K18	I/O	alternative function IO
pad_iomux_133	K19	I/O	alternative function IO
pad_iomux_134	K20	I/O	alternative function IO
pad_iomux_135	K21	I/O	alternative function IO
VSS	L12	P	VSS
VDD11_SYS	N13	P	CORE power
VSS	L12	P	VSS
pad_iomux_136	J18	I/O	alternative function IO
pad_iomux_137	J19	I/O	alternative function IO
pad_iomux_138	J20	I/O	alternative function IO
pad_iomux_139	J21	I/O	alternative function IO
pad_iomux_140	J22	I/O	alternative function IO
VDD33IO6	H16	P	VDDIO6 group power
VSS	N12	P	VSS
VDD11_SYS	T14	P	CORE power
pad_iomux_141	J17	I/O	alternative function IO
pad_iomux_142	H17	I/O	alternative function IO
pad_iomux_143	H18	I/O	alternative function IO
pad_iomux_144	H19	I/O	alternative function IO
pad_iomux_145	H20	I/O	alternative function IO
pad_iomux_146	H21	I/O	alternative function IO
pad_iomux_147	H22	I/O	alternative function IO
VDD33_FLASH_PSO	N15	P	FLASH OUTPUT power
VSS	M13	P	VSS
VDD11_SYS	P14	P	CORE power
VSS	M13	P	VSS
VDD11_SYS	P14	P	CORE power
pad_iomux_148	G18	I/O	alternative function IO
pad_iomux_149	G19	I/O	alternative function IO
pad_iomux_150	G20	I/O	alternative function IO
pad_iomux_151	G21	I/O	alternative function IO
pad_iomux_152	G22	I/O	alternative function IO
VDD11_SYS	M14	P	CORE power
VSS	M13	P	VSS
VDD33IO7	G17	P	VDDIO6 group power
pad_iomux_153	F18	I/O	alternative function IO
pad_iomux_154	F19	I/O	alternative function IO
pad_iomux_155	F20	I/O	alternative function IO
pad_iomux_156	F21	I/O	alternative function IO
pad_iomux_157	F22	I/O	alternative function IO
VSS	K13	P	VSS
pad_iomux_158	E18	I/O	alternative function IO
pad_iomux_159	E19	I/O	alternative function IO
pad_iomux_160	E20	I/O	alternative function IO
pad_iomux_161	E21	I/O	alternative function IO
pad_iomux_162	E22	I/O	alternative function IO
VDD11_SYS	L15	P	VDDIO6 group power
VSS	L14	P	VSS
VDD33IO7	E17	P	VDDIO6 group power
pad_iomux_163	D17	I/O	alternative function IO
pad_iomux_164	D18	I/O	alternative function IO
pad_iomux_165	D19	I/O	alternative function IO
pad_iomux_166	D20	I/O	alternative function IO
pad_iomux_167	D21	I/O	alternative function IO
pad_iomux_168	D22	I/O	alternative function IO
VSS	L14	P	VSS
VDD11_SYS	M16	P	CORE power
VSS	M15	P	VSS
VDD11_SYS	M16	P	CORE power
VSS	M15	P	VSS
VDD11_SYS	K16	P	CORE power
VDD33_LDO	G16	P	LDO power
VSS	H15	P	VSS
VDD33_LDO	G16	P	LDO power
VSS	H15	P	VSS
VDD33_LDO	F15	P	LDO power
VSS	H15	P	VSS
VDD30_AOND_BAT	C19	P	BAT power
VSS	C18	P	VSS
VDD30_AOND_BAT	C19	P	BAT power
VSS	C18	P	VSS
VDD30_AOND_BAT	C19	P	BAT power
VSS	C18	P	VSS
VDD33_AOND_PSI	A17	P	PSI power
VSS	C18	P	VSS
VDD33_AOND_PSI	B17	P	PSI power
VSS	C18	P	VSS

Note

类型: I = 输入引脚, O = 输出引脚, P = 电源， XTAL=时钟

alternative function IO ：引脚复用功能

引脚复用

复用引脚功能汇总如下表

PAD_ID	IO group	PAD_HS0	PAD_HS1	PAD_HS2	PAD_LS
pad_iomux_0	0	pad_qspi_xip0_cs_0	pad_gmc0_dq_27		pad_cec0_line/pad_comp_comp_out_0/pad_comp_comp_out_8/ pad_usart0_rx/pad_usart0_tx/pad_usart0_sclk/pad_usart0_cts/ pad_usart0_rts/pad_xkan0_tx/pad_xkan0_rx/pad_sai0_s0_a_fs/ pad_sai0_s0_a_sck/pad_sai0_s0_a_sd0/pad_sai0_s0_a_sd1/ pad_sai0_s0_a_sd2/pad_sai0_s0_a_sd3/pad_sai0_s0_a_mclk/ pad_advanced_timer0_etr_0/pad_advanced_timer0_ch1/ pad_advanced_timer0_ch2/pad_advanced_timer0_ch3/ pad_advanced_timer0_ch4/pad_advanced_timer0_bkin_0/ pad_advanced_timer0_bkin2_0/pad_advanced_timer0_ch1n/ pad_advanced_timer0_ch2n/pad_advanced_timer0_ch3n/ pad_advanced_timer8_etr_0/pad_advanced_timer8_ch1/ pad_advanced_timer8_ch2/pad_advanced_timer8_ch3/ pad_advanced_timer8_ch4/pad_advanced_timer8_bkin_0/ pad_advanced_timer8_bkin2_0/pad_advanced_timer8_ch1n/ pad_advanced_timer8_ch2n/pad_advanced_timer8_ch3n/ pad_lgpio0_0/pad_lgpio0_1/pad_lgpio0_2/pad_lgpio0_3/ pad_spdifrx0_in1/pad_dfsdm0_ch0_datin/pad_dfsdm0_ch0_ckin/ pad_dfsdm0_ch1_datin/pad_dfsdm0_ch1_ckin
pad_iomux_1	0	pad_qspi_xip0_dq_1	pad_gmc0_dq_26
pad_iomux_2	0	pad_qspi_xip0_dq_2	pad_gmc0_dq_25
pad_iomux_3	0	pad_qspi_xip0_dq_3	pad_gmc0_dq_24
pad_iomux_4	0	pad_qspi_xip0_sck	pad_gmc0_dq_23
pad_iomux_5	0	pad_qspi_xip0_dq_0	pad_gmc0_dq_22
pad_iomux_6	0	pad_sdio0_sddata1	pad_gmc0_dq_21	pad_xec_gen20_gmii_txd3
pad_iomux_7	0	pad_sdio0_sddata0	pad_gmc0_dq_20
pad_iomux_8	0	pad_sdio0_sdcmd	pad_gmc0_dq_19
pad_iomux_9	0	pad_sdio0_sdclk	pad_gmc0_dq_18
pad_iomux_10	0	pad_sdio0_sddata3	pad_gmc0_dq_17	pad_xec_gen20_gmii_txd2
pad_iomux_11	0	pad_sdio0_sddata2	pad_gmc0_dq_16	pad_xec_gen20_gmii_rxd3
pad_iomux_12	0	pad_sdio0_sddata4	pad_gmc0_sdr_cke_1	pad_xec_gen20_gmii_rxd2
pad_iomux_13	0	pad_sdio0_sddata5	pad_gmc0_sdr_cs_n_1	pad_xec_gen20_gmii_col
pad_iomux_14	0	pad_sdio0_sddata6	pad_gmc0_npc_nbl_2	pad_xec_gen20_gmii_crs
pad_iomux_15	0	pad_sdio0_sddata7	pad_gmc0_npc_nbl_3	pad_xec_gen20_gmii_txer
pad_iomux_16	0	pad_xec_gen20_mdio	pad_gmc0_addr_23	pad_qspi_xip0_cs_0
pad_iomux_17	0	pad_xec_gen20_mdc	pad_gmc0_addr_22	pad_qspi_xip0_dq_1
pad_iomux_18	0	pad_xec_gen20_gmii_txen	pad_gmc0_addr_21	pad_qspi_xip0_dq_2
pad_iomux_19	0		pad_gmc0_addr_15
pad_iomux_20	0		pad_gmc0_addr_14
pad_iomux_21	0	pad_xec_gen20_gmii_txd3	pad_gmc0_addr_13
pad_iomux_22	1	pad_xec_gen20_gmii_txd2	pad_gmc0_addr_12	pad_qspi_xip0_dq_3	pad_comp_comp1_out/pad_comp_comp_out_1/pad_comp_comp_out_9/ pad_usart1_rx/pad_usart1_tx/pad_usart1_sclk/pad_usart1_cts/ pad_usart1_rts/pad_usart2_rx/pad_usart2_tx/pad_usart2_sclk/pad_usart2_cts/ pad_usart2_rts/pad_i2c0_scl/pad_i2c0_sda/pad_i2c0_smbalert/pad_xkan1_tx/ pad_xkan1_rx/pad_sai0_s0_b_fs/pad_sai0_s0_b_sck/pad_sai0_s0_b_sd0/ pad_sai0_s0_b_sd1/pad_sai0_s0_b_sd2/pad_sai0_s0_b_sd3/ pad_sai0_s0_b_mclk/pad_advanced_timer1_etr_0/pad_advanced_timer1_ch1/ pad_advanced_timer1_ch2/pad_advanced_timer1_ch3/ pad_advanced_timer1_ch4/pad_advanced_timer1_bkin_0/ pad_advanced_timer1_bkin2_0/pad_advanced_timer1_ch1n/ pad_advanced_timer1_ch2n/pad_advanced_timer1_ch3n/ pad_advanced_timer9_etr_0/pad_advanced_timer9_ch1/ pad_advanced_timer9_ch2/pad_advanced_timer9_ch3/ pad_advanced_timer9_ch4/pad_advanced_timer9_bkin_0/ pad_advanced_timer9_bkin2_0/pad_advanced_timer9_ch1n/ pad_advanced_timer9_ch2n/pad_advanced_timer9_ch3n/pad_lgpio0_4/ pad_lgpio0_5/pad_lgpio0_6/pad_lgpio0_7/pad_i2c2icb0_scl/ pad_i2c2icb0_sda/pad_spdifrx0_in2/pad_swpmi0_tx/pad_swpmi0_suspend/ pad_swpmi0_rx/pad_dfsdm0_ch2_datin/pad_dfsdm0_ch2_ckin/ pad_dfsdm0_ch3_datin/pad_dfsdm0_ch3_ckin/pad_dfsdm0_extrg0
pad_iomux_23	1	pad_xec_gen20_gmii_txd1	pad_gmc0_addr_19	pad_qspi_xip0_sck
pad_iomux_24	1	pad_xec_gen20_gmii_txd0	pad_gmc0_addr_20	pad_qspi_xip0_dq_0
pad_iomux_25	1	pad_xec_gen20_xmii_txc	pad_qspi_xip1_dq_7
pad_iomux_26	1	pad_xec_gen20_gmii_rxc	pad_qspi_xip1_dq_6
pad_iomux_27	1	pad_xec_gen20_gmii_rxd3	pad_gmc0_addr_11
pad_iomux_28	1	pad_xec_gen20_gmii_rxd2	pad_gmc0_addr_10
pad_iomux_29	1	pad_xec_gen20_gmii_rxd1	pad_qspi_xip1_dq_5
pad_iomux_30	1	pad_xec_gen20_gmii_rxd0	pad_qspi_xip1_dq_4
pad_iomux_31	1	pad_xec_gen20_gmii_rxdv	pad_qspi_xip1_dq_2
pad_iomux_32	1	pad_xec_gen20_gmii_rxer	pad_qspi_xip1_dq_3
pad_iomux_33	1	pad_xec_gen20_gmii_col	pad_gmc0_addr_17
pad_iomux_34	1	pad_xec_gen20_gmii_crs	pad_gmc0_addr_16
pad_iomux_35	1	pad_xec_gen20_gmii_txer	pad_gmc0_addr_9
pad_iomux_36	1	pad_xec_gen20_pps_out	pad_gmc0_addr_8
pad_iomux_37	1		pad_gmc0_addr_7
pad_iomux_38	1	pad_qspi_xip1_dqs	pad_gmc0_addr_6
pad_iomux_39	1	pad_qspi_xip1_dq_4	pad_gmc0_addr_5
pad_iomux_40	1	pad_qspi_xip1_dq_5	pad_gmc0_addr_4
pad_iomux_41	1	pad_qspi_xip1_dq_6	pad_gmc0_addr_3
pad_iomux_42	1	pad_qspi_xip1_dq_7	pad_gmc0_addr_2
pad_iomux_43	2	pad_qspi_xip1_dq_2	pad_gmc0_addr_1		pad_comp_comp2_out/pad_comp_comp_out_2/pad_comp_comp_out_10/ pad_usart3_rx/pad_usart3_tx/pad_usart3_sclk/pad_usart3_cts/pad_usart3_rts/ pad_usart4_rx/pad_usart4_tx/pad_usart4_sclk/pad_usart4_cts/pad_usart4_rts/ pad_i2c1_scl/pad_i2c1_sda/pad_i2c1_smbalert/pad_xkan2_tx/pad_xkan2_rx/ pad_sai0_s1_a_fs/pad_sai0_s1_a_sck/pad_sai0_s1_a_sd0/pad_sai0_s1_a_sd1/ pad_sai0_s1_a_sd2/pad_sai0_s1_a_sd3/pad_sai0_s1_a_mclk/pad_sai0_s2_a_sd1/ pad_advanced_timer2_etr_0/pad_advanced_timer2_ch1/ pad_advanced_timer2_ch2/pad_advanced_timer2_ch3/ pad_advanced_timer2_ch4/pad_advanced_timer2_bkin_0/ pad_advanced_timer2_bkin2_0/pad_advanced_timer2_ch1n/ pad_advanced_timer2_ch2n/pad_advanced_timer2_ch3n/ pad_advanced_timer10_etr_0/pad_advanced_timer10_ch1/ pad_advanced_timer10_ch2/pad_advanced_timer10_ch3/ pad_advanced_timer10_ch4/pad_advanced_timer10_bkin_0/ pad_advanced_timer10_bkin2_0/pad_advanced_timer10_ch1n/ pad_advanced_timer10_ch2n/pad_advanced_timer10_ch3n/ pad_lgpio0_8/pad_lgpio0_9/pad_lgpio0_10/pad_lgpio0_11/ pad_spdifrx0_in3/pad_dfsdm0_ckout/pad_dfsdm0_ch4_datin/ pad_dfsdm0_ch4_ckin/pad_dfsdm0_ch5_datin/ pad_dfsdm0_ch5_ckin/pad_dfsdm0_extrg1
pad_iomux_44	2	pad_qspi_xip1_dq_3	pad_gmc0_addr_0
pad_iomux_45	2	pad_qspi_xip1_cs_0	pad_sdio0_sddata4
pad_iomux_46	2	pad_qspi_xip1_dq_1	pad_sdio0_sddata5
pad_iomux_47	2	pad_qspi_xip1_sck	pad_sdio0_sddata6
pad_iomux_48	2	pad_qspi_xip1_dq_0	pad_sdio0_sddata7
pad_iomux_49	2			pad_pid0_pad_eppo_rd_ready
pad_iomux_50	2			pad_pid0_led_working
pad_iomux_51	2			pad_pid0_eppi_pad_sck_m
pad_iomux_52	2			pad_pid0_eppi_vld
pad_iomux_53	2			pad_pid0_eppi_pad_cs_n_0
pad_iomux_54	2			pad_pid0_eppi_pad_cs_n_1
pad_iomux_55	2			pad_pid0_eppi_pad_cs_n_2
pad_iomux_56	2			pad_pid0_sda0
pad_iomux_57	2			pad_pid0_sda1
pad_iomux_58	2			pad_pid0_sda2
pad_iomux_59	2			pad_pid0_sda3
pad_iomux_60	2			pad_pid0_sda4
pad_iomux_61	2			pad_pid0_sda5
pad_iomux_62	2			pad_pid0_sda6
pad_iomux_63	2			pad_pid0_sda7
pad_iomux_64	3	pad_disp0_vs			pad_comp_comp_out_3/pad_usart5_rx/pad_usart5_tx/pad_usart5_sclk/ pad_usart5_rts/pad_usart6_rx/pad_usart6_tx/pad_usart6_sclk/pad_usart6_cts/ pad_usart6_rts/pad_i2c2_scl/pad_i2c2_sda/pad_i2c2_smbalert/pad_qspi3_sck/ pad_qspi3_cs_0/pad_qspi3_dq_0/pad_qspi3_dq_1/pad_qspi3_dq_2/ pad_qspi3_dq_3/pad_sai0_s1_b_fs/pad_sai0_s1_b_sck/pad_sai0_s1_b_sd0/ pad_sai0_s1_b_sd1/pad_sai0_s1_b_sd2/pad_sai0_s1_b_sd3/pad_sai0_s1_b_mclk/ pad_advanced_timer3_etr_0/pad_advanced_timer3_ch1/ pad_advanced_timer3_ch2/pad_advanced_timer3_ch3/ pad_advanced_timer3_ch4/pad_advanced_timer3_bkin_0/ pad_advanced_timer3_bkin2_0/pad_advanced_timer3_ch1n/ pad_advanced_timer3_ch2n/pad_advanced_timer3_ch3n/ pad_advanced_timer11_etr_0/pad_advanced_timer11_ch1/ pad_advanced_timer11_ch2/pad_advanced_timer11_ch3/ pad_advanced_timer11_ch4/pad_advanced_timer11_bkin_0/ pad_advanced_timer11_bkin2_0/pad_advanced_timer11_ch1n/ pad_advanced_timer11_ch2n/pad_advanced_timer11_ch3n/pad_lgpio0_12/ pad_lgpio0_13/pad_lgpio0_14/pad_lgpio0_15/pad_spdifrx0_in4/ pad_dfsdm0_ch6_datin/pad_dfsdm0_ch6_ckin/ pad_dfsdm0_ch7_datin/pad_dfsdm0_ch7_ckin
pad_iomux_65	3	pad_disp0_hs	pad_gmc0_addr_25
pad_iomux_66	3	pad_disp0_pixclk	pad_gmc0_addr_24
pad_iomux_67	3	pad_disp0_de	pad_gmc0_addr_23
pad_iomux_68	3	pad_disp0_red7	pad_gmc0_addr_22
pad_iomux_69	3	pad_disp0_red6	pad_gmc0_addr_21
pad_iomux_70	3	pad_disp0_red5	pad_gmc0_addr_20
pad_iomux_71	3	pad_disp0_red4	pad_gmc0_addr_19
pad_iomux_72	3	pad_disp0_red3	pad_gmc0_addr_18
pad_iomux_73	3	pad_disp0_red2	pad_gmc0_addr_17
pad_iomux_74	3	pad_disp0_red1	pad_gmc0_addr_16
pad_iomux_75	3	pad_disp0_red0
pad_iomux_76	3	pad_disp0_green7
pad_iomux_77	3	pad_disp0_green6
pad_iomux_78	3	pad_disp0_green5
pad_iomux_79	3	pad_disp0_green4
pad_iomux_80	3	pad_disp0_green3
pad_iomux_81	3	pad_disp0_green2
pad_iomux_82	3	pad_disp0_green1	pad_gmc0_dq_15
pad_iomux_83	3	pad_disp0_green0	pad_gmc0_dq_14
pad_iomux_84	3	pad_disp0_blue7
pad_iomux_85	4	pad_disp0_blue6			pad_comp_comp_out_4/pad_usart7_rx/pad_usart7_tx/pad_usart7_sclk/ pad_usart7_cts/pad_usart7_rts/pad_usart8_rx/pad_usart8_tx/pad_usart8_sclk/ pad_usart8_cts/pad_usart8_rts/pad_i2c3_scl/pad_i2c3_sda/pad_i2c3_smbalert/ pad_qspi4_sck/pad_qspi4_cs_0/pad_qspi4_dq_0/pad_qspi4_dq_1/ pad_qspi4_dq_2/pad_qspi4_dq_3/pad_sai0_s2_a_fs/pad_sai0_s2_a_sck/ pad_sai0_s2_a_sd0/pad_sai0_s2_a_sd2/pad_sai0_s2_a_sd3/pad_sai0_s2_a_mclk/ pad_advanced_timer4_etr_0/pad_advanced_timer4_ch1/ pad_advanced_timer4_ch2/pad_advanced_timer4_ch3/ pad_advanced_timer4_ch4/pad_advanced_timer4_bkin_0/ pad_advanced_timer4_bkin2_0/pad_advanced_timer4_ch1n/ pad_advanced_timer4_ch2n/pad_advanced_timer4_ch3n/ pad_advanced_timer12_etr_0/pad_advanced_timer12_ch1/ pad_advanced_timer12_ch2/pad_advanced_timer12_ch3/ pad_advanced_timer12_ch4/pad_advanced_timer12_bkin_0/ pad_advanced_timer12_bkin2_0/pad_advanced_timer12_ch1n/ pad_advanced_timer12_ch2n/pad_advanced_timer12_ch3n/ pad_lgpio0_16/pad_lgpio0_17/pad_lgpio0_18/pad_lgpio0_19
pad_iomux_86	4	pad_disp0_blue5
pad_iomux_87	4	pad_disp0_blue4
pad_iomux_88	4	pad_disp0_blue3
pad_iomux_89	4	pad_disp0_blue2	pad_usb_top0_DRVBUS
pad_iomux_90	4	pad_disp0_blue1	pad_usb_top0_clk480m_div16
pad_iomux_91	4	pad_disp0_blue0	pad_usb_top0_xuc_sof
pad_iomux_92	4		pad_gmc0_dq_13
pad_iomux_93	4		pad_gmc0_dq_12
pad_iomux_94	4		pad_disp0_vs
pad_iomux_95	4	pad_xuc_pll_div_32_clk_t	pad_disp0_hs
pad_iomux_96	4	pad_icb_div_32_clk_t	pad_disp0_pixclk
pad_iomux_97	4	pad_ddr_top0_pll_clk_div32	pad_disp0_de
pad_iomux_98	4	pad_hsi_div_2_clk_t	pad_disp0_red7
pad_iomux_99	4	pad_lsi_div_2_clk_t	pad_disp0_red6
pad_iomux_100	4	pad_sys_pll_div_32_clk_t	pad_disp0_red5
pad_iomux_101	4	pad_core1_pll_div_32_clk_t	pad_disp0_red4
pad_iomux_102	4	pad_clk_in1	pad_disp0_red3
pad_iomux_103	4	pad_clk_in2	pad_disp0_red2	pad_usb_top0_DRVBUS
pad_iomux_104	4	pad_clk_in3	pad_disp0_red1	pad_usb_top0_clk480m_div16
pad_iomux_105	4	pad_clk_in4	pad_disp0_red0	pad_usb_top0_xuc_sof
pad_iomux_106	5	pad_dcmi0_vs	pad_xuc0_xclk		pad_comp_comp_out_5/pad_usart5_cts/pad_usart9_rx/pad_usart9_tx/ pad_usart9_sclk/pad_usart9_cts/pad_usart9_rts/pad_usart10_rx/ pad_usart10_tx/pad_usart10_sclk/pad_usart10_cts/pad_usart10_rts/ pad_qspi5_sck/pad_qspi5_cs_0/pad_qspi5_dq_0/pad_qspi5_dq_1/ pad_qspi5_dq_2/pad_qspi5_dq_3/pad_sai0_s2_b_fs/pad_sai0_s2_b_sck/ pad_sai0_s2_b_sd0/pad_sai0_s2_b_sd1/pad_sai0_s2_b_sd2/pad_sai0_s2_b_sd3/ pad_sai0_s2_b_mclk/pad_advanced_timer5_etr_0/pad_advanced_timer5_ch1/ pad_advanced_timer5_ch2/pad_advanced_timer5_ch3/ pad_advanced_timer5_ch4/pad_advanced_timer5_bkin_0/ pad_advanced_timer5_bkin2_0/pad_advanced_timer5_ch1n/ pad_advanced_timer5_ch2n/pad_advanced_timer5_ch3n/ pad_advanced_timer13_etr_0/pad_advanced_timer13_ch1/ pad_advanced_timer13_ch2/pad_advanced_timer13_ch3/ pad_advanced_timer13_ch4/pad_advanced_timer13_bkin_0/ pad_advanced_timer13_bkin2_0/pad_advanced_timer13_ch1n/ pad_advanced_timer13_ch2n/pad_advanced_timer13_ch3n/ pad_lgpio0_20/pad_lgpio0_21/pad_lgpio0_22/pad_lgpio0_23
pad_iomux_107	5	pad_dcmi0_hs	pad_xuc0_ulpi_stp
pad_iomux_108	5	pad_dcmi0_pix15	pad_xuc0_ulpi_dir
pad_iomux_109	5	pad_dcmi0_camclk	pad_xuc0_DRVBUS
pad_iomux_110	5	pad_dcmi0_pix14	pad_xuc0_ulpi_nxt
pad_iomux_111	5	pad_dcmi0_pix13	pad_xuc0_ulpi_data_bit0
pad_iomux_112	5	pad_dcmi0_pixclk	pad_xuc0_ulpi_data_bit1
pad_iomux_113	5	pad_dcmi0_pix12	pad_xuc0_ulpi_data_bit2
pad_iomux_114	5	pad_dcmi0_pix8	pad_xuc0_ulpi_data_bit3
pad_iomux_115	5	pad_dcmi0_pix11	pad_xuc0_ulpi_data_bit4
pad_iomux_116	5	pad_dcmi0_pix9	pad_xuc0_ulpi_data_bit5
pad_iomux_117	5	pad_dcmi0_pix10	pad_xuc0_ulpi_data_bit6
pad_iomux_118	5	pad_dcmi0_pix7	pad_xuc0_ulpi_data_bit7
pad_iomux_119	5	pad_dcmi0_pix6
pad_iomux_120	5	pad_dcmi0_pix5	pad_xuc0_xrstn
pad_iomux_121	5	pad_dcmi0_pix4	pad_xuc0_xuc_sof
pad_iomux_122	5	pad_dcmi0_pix3	pad_jtag_tdi	pad_xuc0_xclk_pll_div2_n
pad_iomux_123	5	pad_dcmi0_pix2	pad_jtag_tdo	pad_xuc0_xclk_pll_div2_p
pad_iomux_124	5	pad_dcmi0_pix1	pad_jtag_tck
pad_iomux_125	5	pad_dcmi0_pix0	pad_jtag_tms
pad_iomux_126	5		pad_dbg_ddr_top_jtag_en
pad_iomux_127	6		pad_gmc0_dq_11		pad_comp_comp_out_6/pad_usart11_rx/pad_usart11_tx/pad_usart11_sclk/ pad_usart11_cts/pad_usart11_rts/pad_sai0_s3_a_fs/pad_sai0_s3_a_sck/ pad_sai0_s3_a_sd0/pad_sai0_s3_a_sd1/pad_sai0_s3_a_sd2/pad_sai0_s3_a_sd3/ pad_sai0_s3_a_mclk/pad_advanced_timer6_etr_0/pad_advanced_timer6_ch1/ pad_advanced_timer6_ch2/pad_advanced_timer6_ch3/ pad_advanced_timer6_ch4/pad_advanced_timer6_bkin_0/ pad_advanced_timer6_bkin2_0/pad_advanced_timer6_ch1n/ pad_advanced_timer6_ch2n/pad_advanced_timer6_ch3n/ pad_advanced_timer14_etr_0/pad_advanced_timer14_ch1/ pad_advanced_timer14_ch2/pad_advanced_timer14_ch3/ pad_advanced_timer14_ch4/pad_advanced_timer14_bkin_0/ pad_advanced_timer14_bkin2_0/pad_advanced_timer14_ch1n/ pad_advanced_timer14_ch2n/pad_advanced_timer14_ch3n/ pad_lgpio0_24/pad_lgpio0_25/pad_lgpio0_26/pad_lgpio0_27/ pad_i3c0_scl/pad_i3c0_sda/pad_i3c0_smbalert/pad_capc0_ch1/ pad_capc0_ch2/pad_capc0_ch3/pad_capc0_ch0
pad_iomux_128	6		pad_gmc0_dq_10
pad_iomux_129	6	pad_hs_sdio0_sdclk	pad_gmc0_npc_ne_0	pad_qspi6_sck
pad_iomux_130	6	pad_hs_sdio0_sdclkin	pad_gmc0_dq_9
pad_iomux_131	6	pad_hs_sdio0_sdcmd_dir	pad_gmc0_dq_8
pad_iomux_132	6	pad_hs_sdio0_sddata0_dir	pad_gmc0_dq_7
pad_iomux_133	6	pad_hs_sdio0_sddata123_dir	pad_gmc0_dq_6
pad_iomux_134	6	pad_hs_sdio0_sdcmd	pad_gmc0_npc_ne_1	pad_qspi6_dq_0
pad_iomux_135	6	pad_qspi_xip2_dq_2
pad_iomux_136	6	pad_qspi_xip2_dq_1
pad_iomux_137	6	pad_qspi_xip2_cs_0
pad_iomux_138	6	pad_hs_sdio0_sddata0		pad_qspi6_dq_1
pad_iomux_139	6	pad_hs_sdio0_sddata1	pad_gmc0_we_n
pad_iomux_140	6	pad_hs_sdio0_sddata2	pad_gmc0_npc_nbl_0
pad_iomux_141	6	pad_hs_sdio0_sddata3	pad_gmc0_npc_nbl_1	pad_qspi6_cs_0
pad_iomux_142	6	pad_hs_sdio0_sddata4	pad_gmc0_dq_5	pad_jtag_tdi
pad_iomux_143	6	pad_hs_sdio0_sddata5	pad_gmc0_dq_4	pad_jtag_tdo
pad_iomux_144	6	pad_hs_sdio0_sddata6	pad_gmc0_dq_3	pad_jtag_tck
pad_iomux_145	6	pad_hs_sdio0_sddata7	pad_gmc0_dq_2	pad_jtag_tms
pad_iomux_146	6		pad_gmc0_dq_1
pad_iomux_147	6		pad_gmc0_dq_0
pad_iomux_148	7	pad_qspi_xip2_dq_0			pad_comp_comp_out_7/pad_usart12_rx/pad_usart12_tx/pad_usart12_sclk/ pad_usart12_cts/pad_usart12_rts/pad_sai0_s3_b_fs/pad_sai0_s3_b_sck/ pad_sai0_s3_b_sd0/pad_sai0_s3_b_sd1/pad_sai0_s3_b_sd2/pad_sai0_s3_b_sd3/ pad_sai0_s3_b_mclk/pad_advanced_timer7_etr_0/pad_advanced_timer7_ch1/ pad_advanced_timer7_ch2/pad_advanced_timer7_ch3/ pad_advanced_timer7_ch4/pad_advanced_timer7_bkin_0/ pad_advanced_timer7_bkin2_0/pad_advanced_timer7_ch1n/ pad_advanced_timer7_ch2n/pad_advanced_timer7_ch3n/ pad_advanced_timer15_etr_0/pad_advanced_timer15_ch1/ pad_advanced_timer15_ch2/pad_advanced_timer15_ch3/ pad_advanced_timer15_ch4/pad_advanced_timer15_bkin_0/ pad_advanced_timer15_bkin2_0/pad_advanced_timer15_ch1n/ pad_advanced_timer15_ch2n/pad_advanced_timer15_ch3n/pad_lgpio0_28/ pad_lgpio0_29/pad_lgpio0_30/pad_lgpio0_31/pad_mdios0_mdios/ pad_mdios0_mdc/pad_capc0_ch4/pad_capc0_ch5/ pad_capc0_ch6/pad_capc0_ch7
pad_iomux_149	7	pad_qspi_xip2_dq_3
pad_iomux_150	7	pad_qspi_xip2_sck
pad_iomux_151	7	pad_gmc0_cas_n		pad_gmc0_npc_clk
pad_iomux_152	7	pad_gmc0_ras_n		pad_gmc0_npc_nadv
pad_iomux_153	7	pad_gmc0_sdr_cs_n_0		pad_gmc0_npc_nwe
pad_iomux_154	7	pad_gmc0_sdr_cke_0		pad_gmc0_npc_noe
pad_iomux_155	7	pad_gmc0_sdr_clk		pad_gmc0_npc_nwait
pad_iomux_156	7		pad_gmc0_we_n	pad_gmc0_npc_ne_0
pad_iomux_157	7		pad_gmc0_npc_nbl_0
pad_iomux_158	7		pad_gmc0_npc_nbl_1
pad_iomux_159	7	pad_qspi6_dq_2		pad_gmc0_npc_ne_2
pad_iomux_160	7	pad_qspi6_dq_3		pad_gmc0_npc_ne_3
pad_iomux_161	7	pad_qspi6_cs_0	pad_gmc0_dq_31	pad_hs_sdio0_sddata4
pad_iomux_162	7	pad_qspi6_sck	pad_gmc0_dq_30	pad_hs_sdio0_sddata5
pad_iomux_163	7	pad_qspi6_dq_0	pad_gmc0_dq_29	pad_hs_sdio0_sddata6
pad_iomux_164	7	pad_qspi6_dq_1	pad_gmc0_dq_28	pad_hs_sdio0_sddata7
pad_iomux_165	7		pad_gmc0_ctl_dir
pad_iomux_166	7		pad_gmc0_dq_dir
pad_iomux_167	7
pad_iomux_168	7

HS0、HS1、HS2 表示高速可选择的功能，LS 表示低速可选择的功能。例如，pad_iomux_0 可以作为 pad_qspi_xip0_cs_0（HS0）、pad_gmc0_dq_27（HS1），或下列 LS 组中的任意一个引脚功能：

pad_comp_comp_out_5, pad_usart5_cts, pad_usart9_rx
pad_usart9_tx, pad_usart9_sclk, pad_usart9_cts
pad_usart9_rts, pad_usart10_rx, pad_usart10_tx
pad_usart10_sclk, pad_usart10_cts, pad_usart10_rts
pad_qspi5_sck, pad_qspi5_cs_0, pad_qspi5_dq_0
pad_qspi5_dq_1, pad_qspi5_dq_2, pad_qspi5_dq_3
pad_sai0_s2_b_fs, pad_sai0_s2_b_sck, pad_sai0_s2_b_sd0
pad_sai0_s2_b_sd1, pad_sai0_s2_b_sd2, pad_sai0_s2_b_sd3
pad_sai0_s2_b_mclk, pad_advanced_timer5_etr_0, pad_advanced_timer5_ch1
pad_advanced_timer5_ch2, pad_advanced_timer5_ch3, pad_advanced_timer5_ch4
pad_advanced_timer5_bkin_0, pad_advanced_timer5_bkin2_0, pad_advanced_timer5_ch1n
pad_advanced_timer5_ch2n, pad_advanced_timer5_ch3n, pad_advanced_timer13_etr_0
pad_advanced_timer13_ch1, pad_advanced_timer13_ch2, pad_advanced_timer13_ch3
pad_advanced_timer13_ch4, pad_advanced_timer13_bkin_0, pad_advanced_timer13_bkin2_0
pad_advanced_timer13_ch1n, pad_advanced_timer13_ch2n, pad_advanced_timer13_ch3n
pad_lgpio0_20, pad_lgpio0_21, pad_lgpio0_22, pad_lgpio0_23

LS 在 IO group 内为全互联，组内任何一个引脚功能都可以从当前 group 内的任意一个引脚输出， 组内任意一个 pad 均可作为该功能的输入输出引脚。例如，上表中的所有功能都可以从 pad_iomux_0 ~ pad_iomux_21 中任意一个 pad 输入输出。
